NAUTICAM 7'' G7 UW ULTRAHD Monitor (HDMI 1.4 / 2K SDI input, excl. cables)
Introducing 7'' G7 HD UltraBright Monitor (HDMI 1.4 and 2K SDI input, excl. cables)

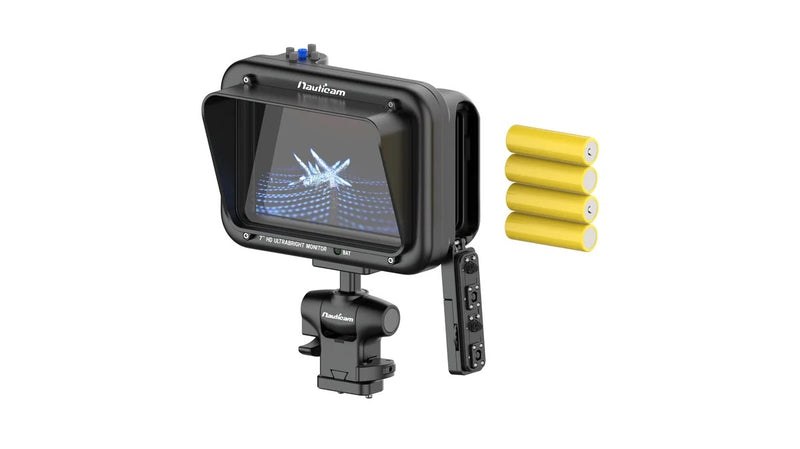

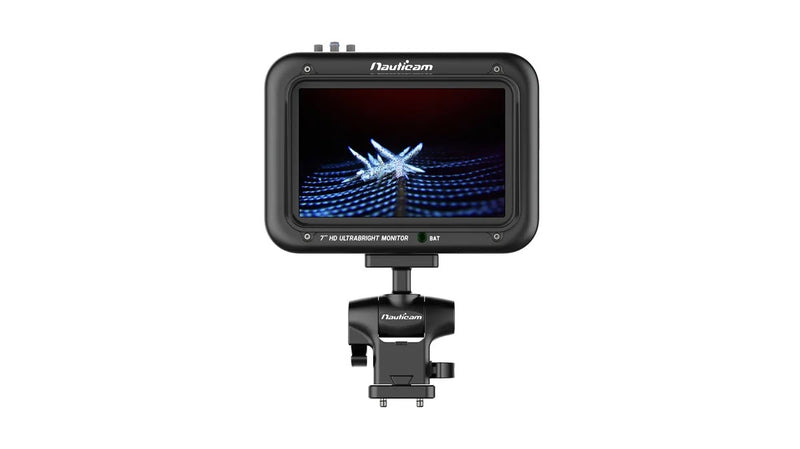

The Nauticam 7'' G7 HD UltraBright Monitor
Key Features:
-

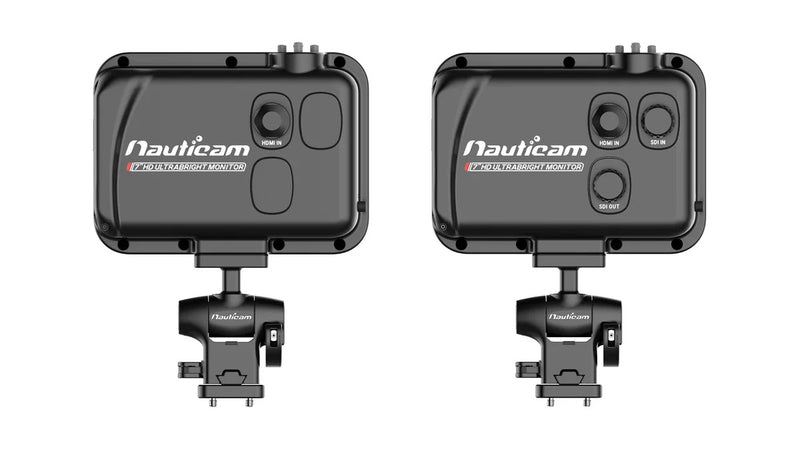

Inputs and Outputs: The G7 supports both 4K HDMI and 2K SDI inputs as well as SDI output. Please note HDMI to SDI cross conversion is not supported.
-
Exceptional Brightness & Clarity: With an impressive 3000 nit brightness, the monitor provides clear, vibrant images even in direct sunlight, so you won’t miss a detail.
-
Advanced Image Control Tools: Easily access the following tools all at your fingertips. Anamorphic De-Squeeze, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, Histogram, Image Flip, Vector scope, Waveform, Zebra
-

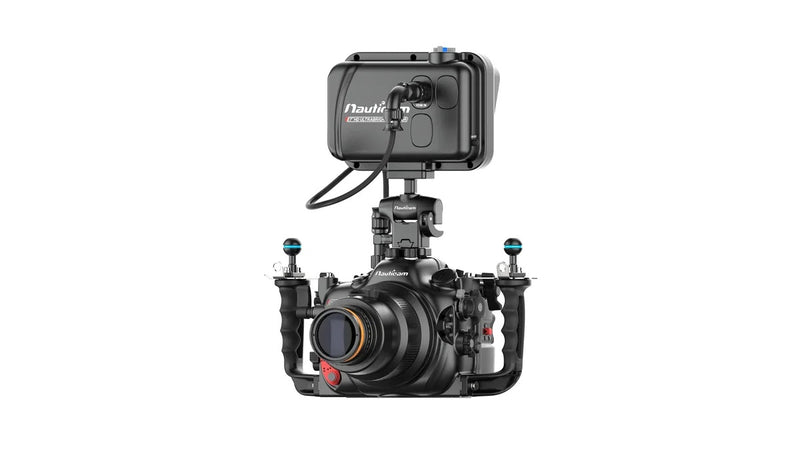

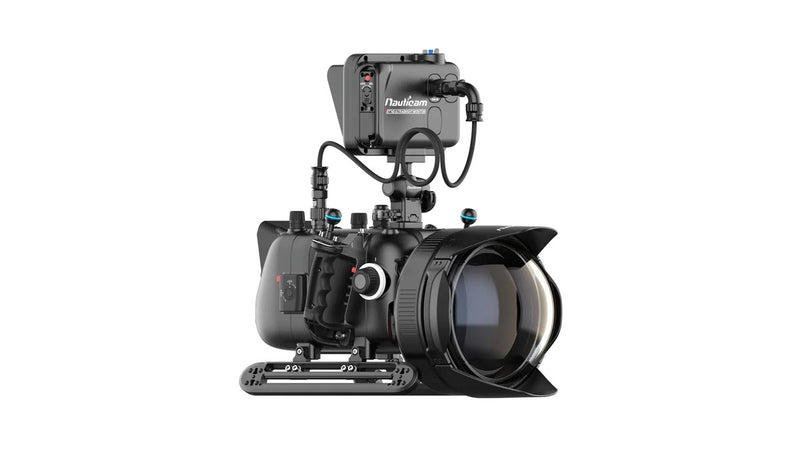

Swivel and Tilt Adjustable Monitor Mount System: This newly designed mount ensures smooth adjustments any any angle, making this monitor an invaluable tool for underwater image makers.
Resources
Resources
Instruction Manual PDF Download
What’s In The Box:
- 16611 Nauticam 7'' G7 HD UltraBright Monitor
- Monitor Hood
- Swivel and Tilt Adjustable Monitor Mount System (attached to camera/Cine Housing with 2x ¼’’-20 UNC screws)
- Spare O-ring for battery door, O-ring remover and lubricant
- Padded Travel Case
Required Accessories to use with HDMI 1.4 input:
- 25033 Standard HDMI bulkhead with M16 thread
- 25081 M24-M16 Step Down Adaptor may be required for a certain camera
- 25100 HDMI (D-A) 1.4 Cable in 200mm length for NA-a1/FX3/GH6 (for connection from HDMI bulkhead to camera)
- 25047 HDMI (D-D) 1.4 cable in 800mm length (for connection between HDMI bulkheads)
Required Accessories to use with SDI input:
- 25058 M16 SDI Bulkhead
- 25060 SDI cable in 0.4m length (for connection from camera to underside of SDI Bulkhead)
- 25061 SDI cable in 0.75m length (for connection between SDI Bulkheads)
Required Accessories to use with SDI out
- 25064 SDI surface monitor cable in 15m length (for connection from SDI Bulkhead to Surface Monitor on land)
- 25065 SDI surface monitor cable in 45m length (for connection from SDI Bulkhead to Surface Monitor on land)
Standard shipping
Estimated delivery time: 3-5 days
Specifications
*Specifications and Appearances are subject to change without prior notice.
